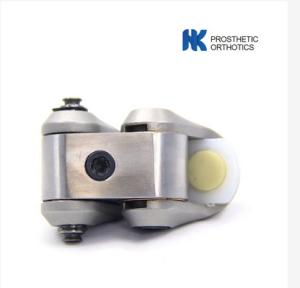

Stainless Steel Self Lock Prosthetic Knee Joint Single Axis

Name: Stainless Steel Self Lock Prosthetic Knee Joint Single Axis
Brand: HK PROSTHETIC&ORTHOTIC
Price: 60 USD

Quality Stainless Steel Self Lock Prosthetic Knee Joint Single Axis wholesale

Brand Name : HK PROSTHETIC&ORTHOTIC

Model Number : CHG-01S

Certification : CE And ISO13485

Place of Origin : CHINA

MOQ : 5 Pcs

Price : USD 60~40 Per Pcs

Payment Terms : T/T, Western Union,

Supply Ability : 1000000 Pcs Per Year

Delivery Time : Within 7 Work Days

Packaging Details : Shaped EPE With Cartons

Material : Stainless steel

Connections : AK

Weight : 669g

Weight Limit : 100Kg / 220Lbs

Activity Level : K1,K2

Maximum Knee Flexion Angle : 150°

Knee Center to Proximal Connection : 40mm

Proximal Connection : Pyramidal Adaptor

Distal Connection : Pyramidal Adaptor

Warranty : Two Years

Contact Now

Prosthetic Knee Joint-Single Axis Knee Joint With Self-Lock Stainless Steel Max body weight 100Kg

Suitable for max. 100 kg (220lbs) body weight

Recommendation:

• For trans-femoral amputees • With moderate functional levels

• High stance phase stability • Moderate swing phase control

• Not suitable for amputees with higher functional levels

Description:

The connection between upper and lower joint section is generated by the swing- and friction axis and

operates as a load dependend brake. This secures, in combination with the posterior positioning, the stance

phase. The adjustment of the axis friction and spring load

controls the swing phase.

Technical Data:

• Knee flexion range: approx. 150° • Height (knee center - upper edge): 40 mm

Product Number	Material	Standard	Part Weight	Weight Limit
CHG—01S	Casting S.Steel	Work with CHF-01	669g	220lbs

Stainless Steel Self Lock Prosthetic Knee Joint Single Axis
